Almost seamless joint with Hydrolock.

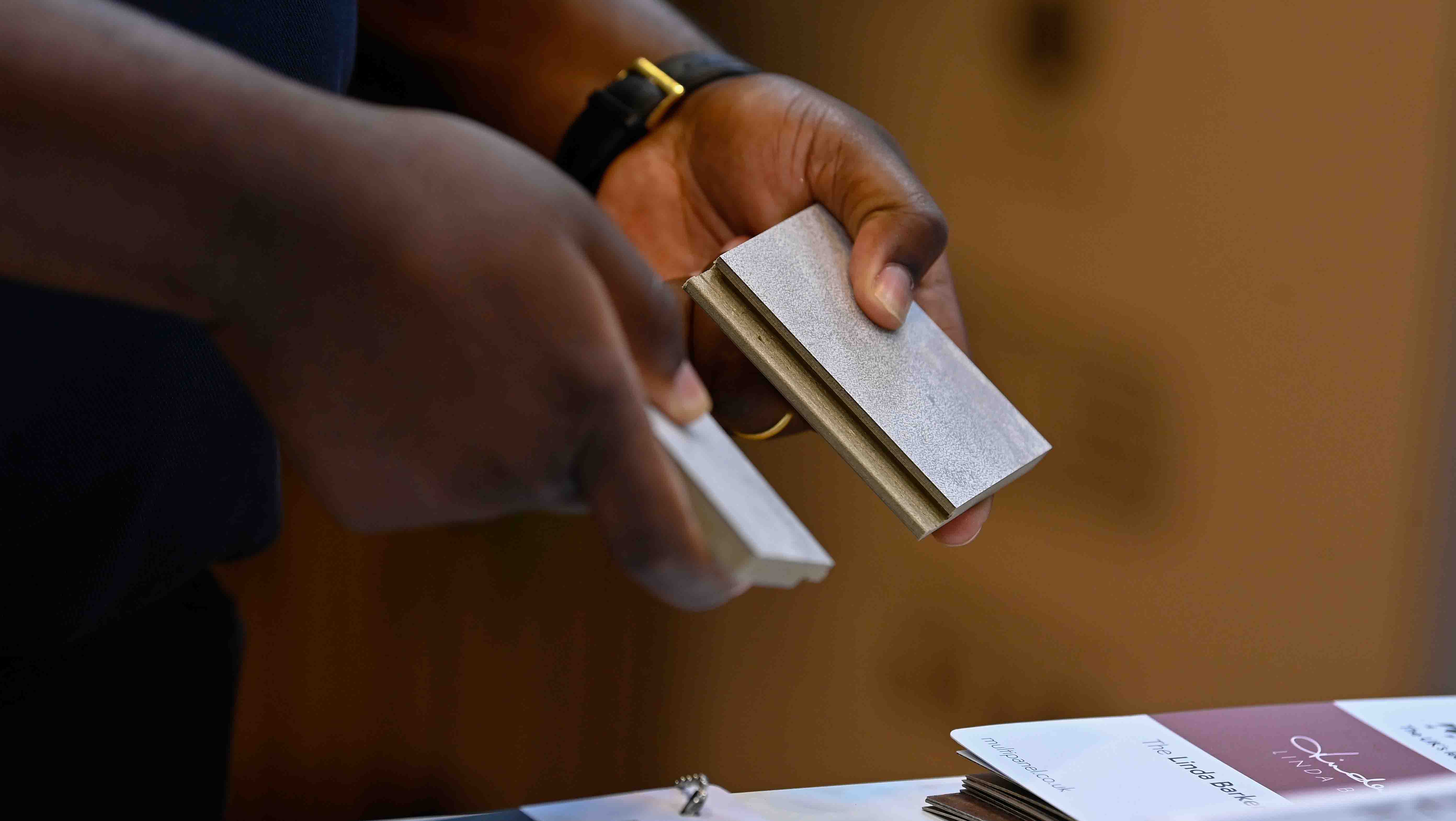

The Multipanel Hydrolock connection makes it possible to join two bathroom wall panels together without a mid-joint. Precisely engineered, Hydrolock edge details create a discreet and watertight joint for complete peace of mind. Recently improved to make installation even easier.


Technical Information

  • Hydrolock panels are supplied as standard with tongued and grooved edges for easy click-into-place installation
  • The accuracy of pattern alignment between panels may vary depending on the scale of the pattern
  • Hydrolock panels should be conditioned at normal room temperature for 48-72 hours prior to installation, particularly during cold spells
  • Bathroom wall panels should be fitted ‘grooved’ edge first, and the ‘tongued’ edge of the next panel angled in and pushed back until it snaps into place
  • A narrow bead of sealant must be applied to the shoulder of the ‘tongue’
  • Full fitting instructions should be read prior to installation
  • When manufacturing Hydrolock joints, 18mm is lost from the original panel width, e.g.

2400 x 598mm = 2400 x 580mm finished face size*

2400 x 900mm = 2400 x 882mm finished face size*

2400 x 1200mm = 2400 x 1182mm finished face size

*Not available in the Pure Collection
